Description

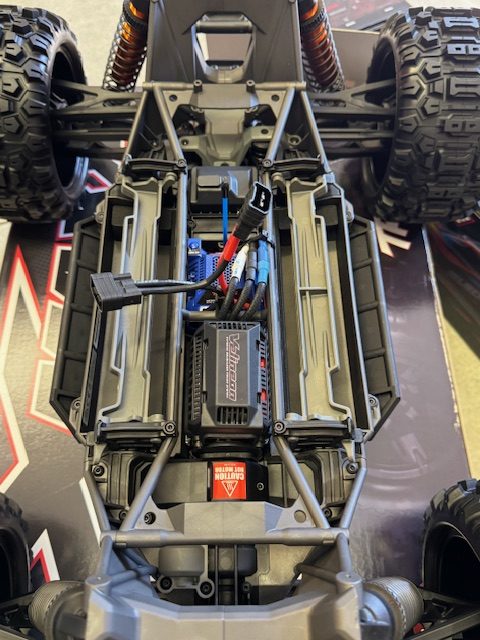

VXL-8s™ Waterproof Electronic Speed Control
-
- 8s LiPo compatible
- Built-in cooling fan
- Real-time telemetry via Traxxas Link
- Machined heat sinks
- 10-gauge silicone wire
- Integrated protection circuits
- LED status lights
- Velineon® 1200XL Brushless Motor
- “Big Block” brushless motor
- 4-pole 1275 kV
- 5 mm output shaft
- Aluminum slip-on heat sink
- Dual motor cooling fans
- 50+ MPH with Two 4s LiPo Batteries and Included Optional Spur Gear
- Traxxas Stability Management® (TSM)
- Helps prevents spinouts and loss of control
- Adjusts from off to 100% assistance from the transmitter
- TQi™ 2.4 GHz High Output Radio System
- Traxxas Link™ enabled
- 2.4 GHz 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
- Automatically stores and loads settings for up to 30 Traxxas Link-enabled models—just switch on and drive, “model selection” is not required
- Multi-Function knob
- Adjustable steering and throttle percentage (dual rates)
- Adjustable steering and throttle sensitivity (exponential)
- BEC Voltage and Motor Temperature Sensor installed
- Clipless Body Mount System
- Quick one-hand installation and removal
- Uses pivoting rear latch mechanism
- Eliminates body posts and clips
- Drivetrain
- Full-time shaft-driven 4-wheel drive
- Heavy-duty Cush Drive™ with steel spur gear
- Fully machined aluminum stub axles
- Splined aluminum center driveshaft
- All-metal gears and CVDs
- Overdrive gearing pre-installed
- Torque-Biasing Center Drive™ absorbs shocks and distributes power
- 24 mm splined wheel hexes
- Wheel hexes retained with a clip
- 17 mm hex on outside of wheel
- Sealed, silicone fluid-filled diffs with large module ring and pinion gears
- Splined outdrives attached with external thru-bolt method
- Heavy-Duty Fixed Motor Mount
- Precision, preset gear mesh adjustments
- No manual gear mesh adjustments are required
- Motor retention separate from gear mesh
- Heavy-Duty Modular Composite Chassis
- Interlocking front and rear bulkheads
- Motor mounts to rear bulkhead to eliminate gear crunching flex
- Easy to service and access components
- Driveline is sealed in the chassis to keep out dirt and grit
- Clipless Battery Retention System
- No body clips or hook and loop straps
- Battery hold-downs pivot for easy access
- Adjustable for battery size
- More secure than conventional retention systems
- Integrated into chassis top brace for improved battery tray and chassis stiffness
- Bumpers
- Front energy absorbing rubber impact bumper
- Lower front and rear skids for impact and abrasion resistance
- Integrated nerf bars for side impact resistance
- Heavy-Duty Steering Bell Cranks and Servo Saver
- High-output steering servo
- Wired directly into the RX box, no external wires seen on chassis
- New mounting system to fully support case
- Double-shear, bearing supported servo horn

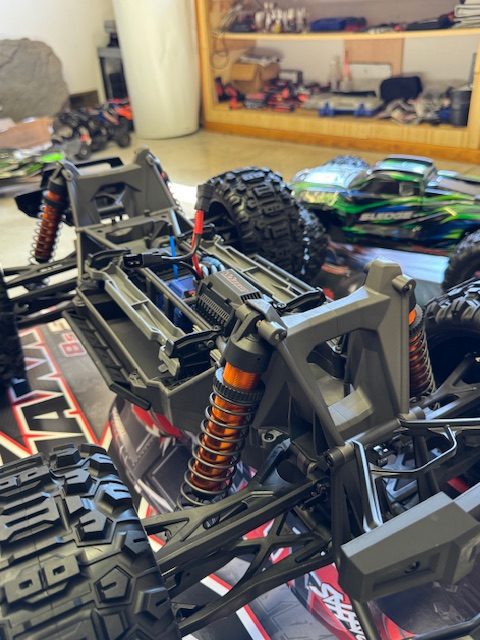

- Suspension
- Engineered to optimize suspension travel and steering angles
- Full contact sealed bearings used in exposed locations
- All critical suspension points have double shear strength
- High strength steel suspension pins used throughout
- Suspension pins retainers won’t come loose or “back-out”
- 4 mm machined pivot balls
- C-hub and steering block geometry maximizes steering angle
- Adjustable roll center
- Fixed, high-strength camber and toe links
- Steel upper and lower tie bars
- Large-Scale GTX Shocks
- Machined aluminum threaded body
- Extra-large bore and capacity
- 5.2 mm damper shaft
- Lower seal cartridge includes integrated wiper seal combination
- Adjustable upper spring retainer
- Plastic shock caps with pivot balls
- Fixed shock locations
- Lower spring perches bolted on
- Wheels/Tires
- Massive 8.4″ Sledgehammer® belted tires
- Virtually eliminates ballooning at high speeds
- Open tread block design
- 2-piece foam insert
- High-strength glue and bead design
- Large, dual-diameter wheels
- Massive 8.4″ Sledgehammer® belted tires

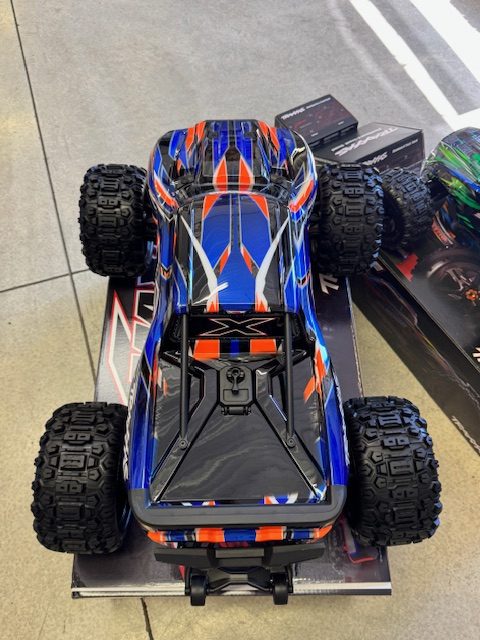

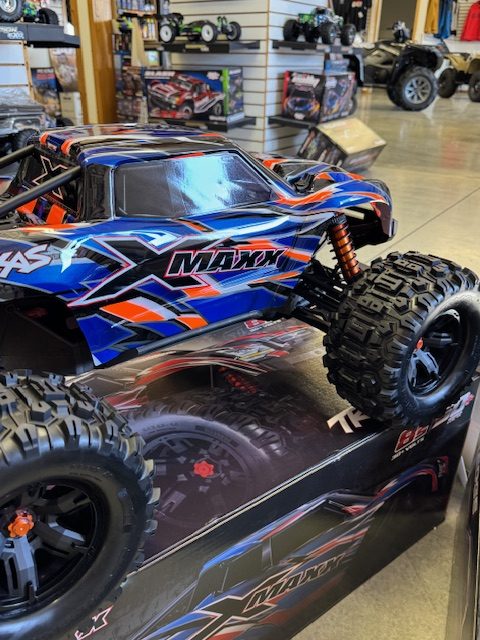

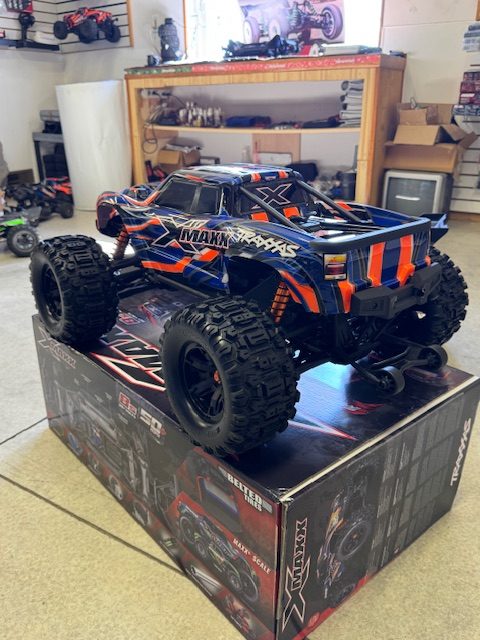

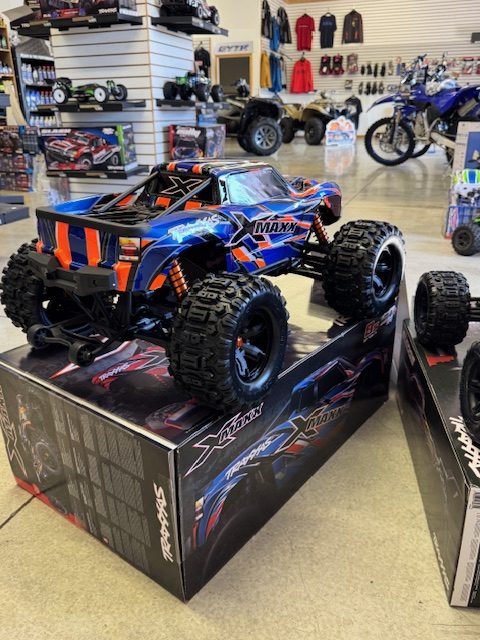

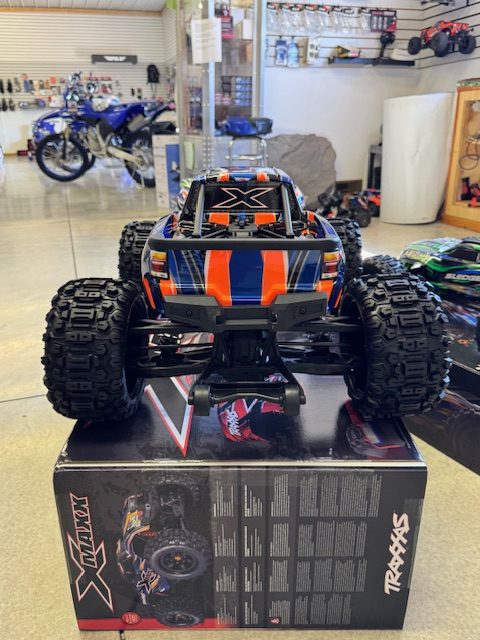

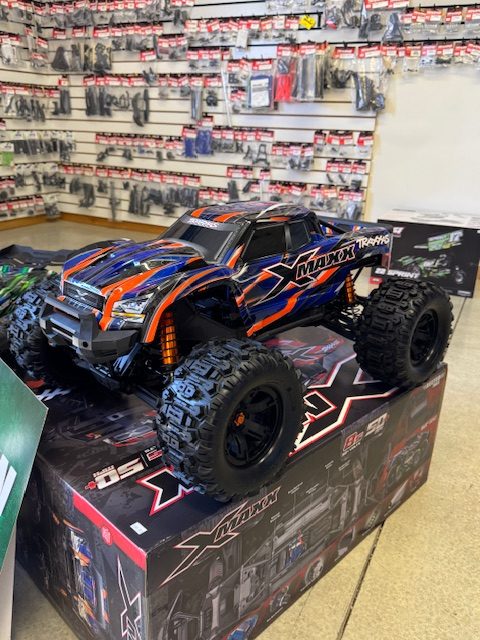

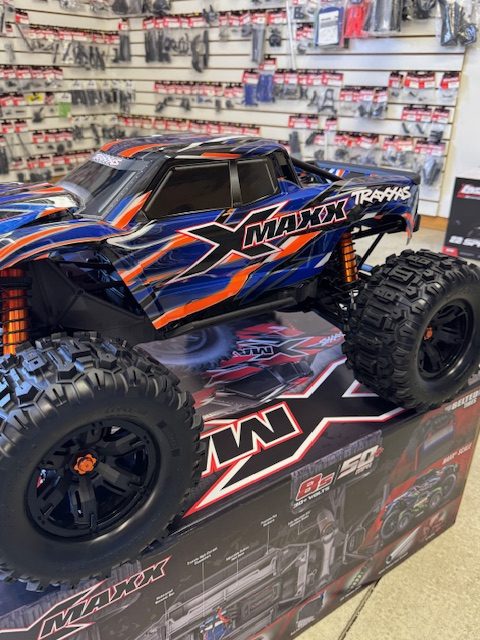

MODEL 77096-4: Fully assembled, Ready-To-Race®, with TQi™ 2.4 GHz Radio System, VXL-8s Brushless Power System, belted Sledgehammer® tires, and ProGraphix® painted body.
What’s In The Box:
- X-Maxx, Ready-To-Race model with Traxxas Big Block brushless motor
- VXL-8s waterproof electronic speed control with integrated telemetry
- Quick Start Guide
- TQi 2.4 GHz radio system
- High quality maintenance tools
What You’ll Need:
- Batteries
IMPORTANT: X-Maxx requires the use of LiPo batteries equipped with Traxxas High Current Connectors. Traxxas 4-Cell, 6700 mAh Power Cell LiPo batteries with iD® are recommended for optimal performance.(part 2890X).
- Chargers
EZ Peak Live Dual 4s LiPo with iD®
- AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.
